Pine film faced formwork plywood
Film Faced Formwork Plywood

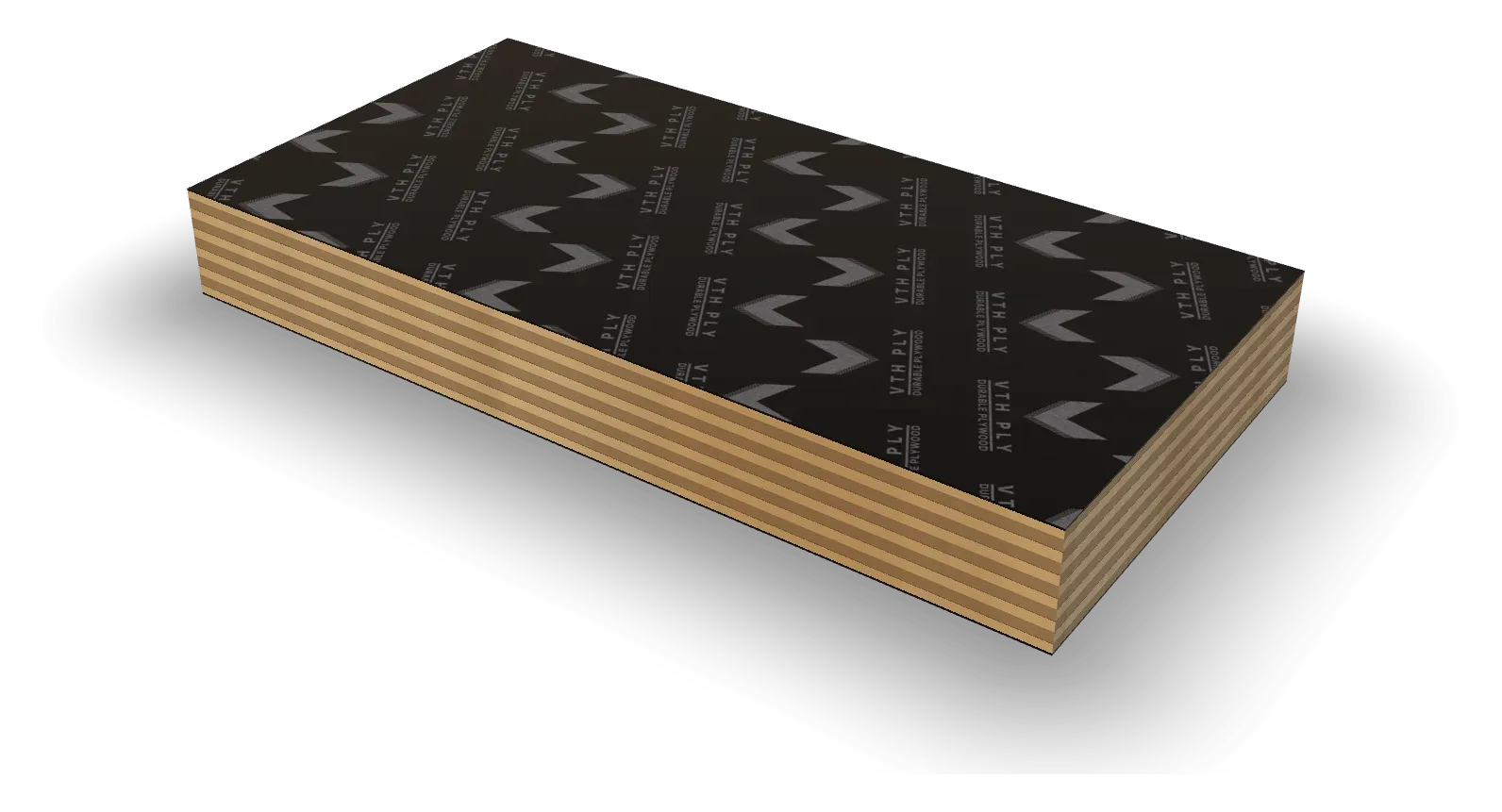

C-PLYBirch film faced formwork plywood
C-PLY is a premium formwork panel made entirely of birch veneers and faced with phenolic film on both sides. Its dense 13–15 ply build delivers high load capacity, a long service life and a smooth, clean concrete finish.
- Phone+90 364 235 01 32
- E-mailsales@akcaplywood.com
C-PLY18 – 21 mm
01Technical specifications
| Wood species | Birch |
|---|---|
| Glue | WBP (weather & boil proof, phenolic) |
| Thickness | 18 – 21 mm |
| Plies | 13 – 15 plies |
| Dimensions | 2500 × 1250 · 2440 × 1220 · 3000 × 1500 · 3000 × 1250 mm |
| Face | Phenolic film (125 g/m²) — black, brown, dark brown |
| Edge sealing | Acrylic waterproof paint |
| Density | 640–760 kg/m³ |
| Tolerance | In line with EN 315 |
Measured values
| Bond strength · after 6 h boilingEN 314 | 8.56 N/mm² |
|---|---|
| Bond strength · after 24 h in waterEN 314 | 8.94 N/mm² |
| Bending strengthEN 310 | 73.3 N/mm² |
| Modulus of elasticity in bendingEN 310 | 7,946 N/mm² |
| Moisture contentEN 322 | 9.2% |
| Density (incl. film)EN 323 | 720 kg/m³ |
Measured in our own laboratory by our forest products engineer on an 18 mm, 13-ply birch sample with phenolic film on both faces. Values refer to the tested sample.
02Applications
- 01Concrete formwork systems
- 02Building and infrastructure projects
- 03Bridges, tunnels and shear walls
- 04Outdoor applications
03Film print
C-PLY film face
The product’s own logo is printed diagonally across the phenolic film face, so the panel is recognisable at a glance on site.
Move your cursor over the panel to catch the light
03Get a Quote
Request a quote for this product
Send us the thickness, size and quantity you need — our sales team will respond shortly.
